Minimum fuss with maximum security and predictability. Captive Eye connectors, when incorporated into systems, give fixed connections that are almost impossible to misalign in 'real life' use
| Availability | |
|---|---|
| Quantity | Dispatch time |
| 6 pcs | 1–2 Days |

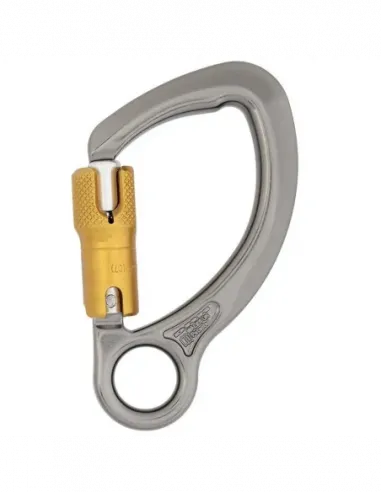

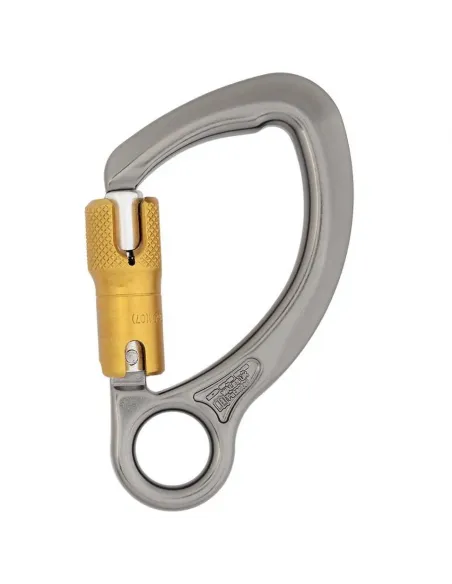

Captive eye for permanent connection
Sometimes it is essential for a connector to stay in the correct orientation or to be permanently attached to a system. The DMM captive eye connectors, with their textile friendly attachment holes, can be stitched into a rope or webbing loop, or swaged directly onto cable. They provide predicable direction of load and total security as the connector cannot be removed or misaligned.
Keylock clean nose for snag free connection
DMM's patented 'Taperlock' closing mechanism increases gate push-in and cross gate strength using a special flared profile on the nose of the carabiner, as well as allowing a snag free connection for your ropes, slings and devices.
| Product Name | Colour | MBS (Major Axis) | MBS (Minor Axis) | Dimensions | Weight | Gate Opening (X) | Certification |
|---|---|---|---|---|---|---|---|
|
Captive Eye Locksafe
|
Titanium/Green | 30kN | - | 77 x 138mm | 108g | 23mm | EN 362:2004 T |
|
Captive Eye Locksafe ANSI
|
Titanium/Gold | 30kN | 16kN | 77 x 138mm | 125g | 19mm | EN 362:2004 T, ANSI/ASSE Z359.12-2019, CAN/CSA Z259.12-16 |
