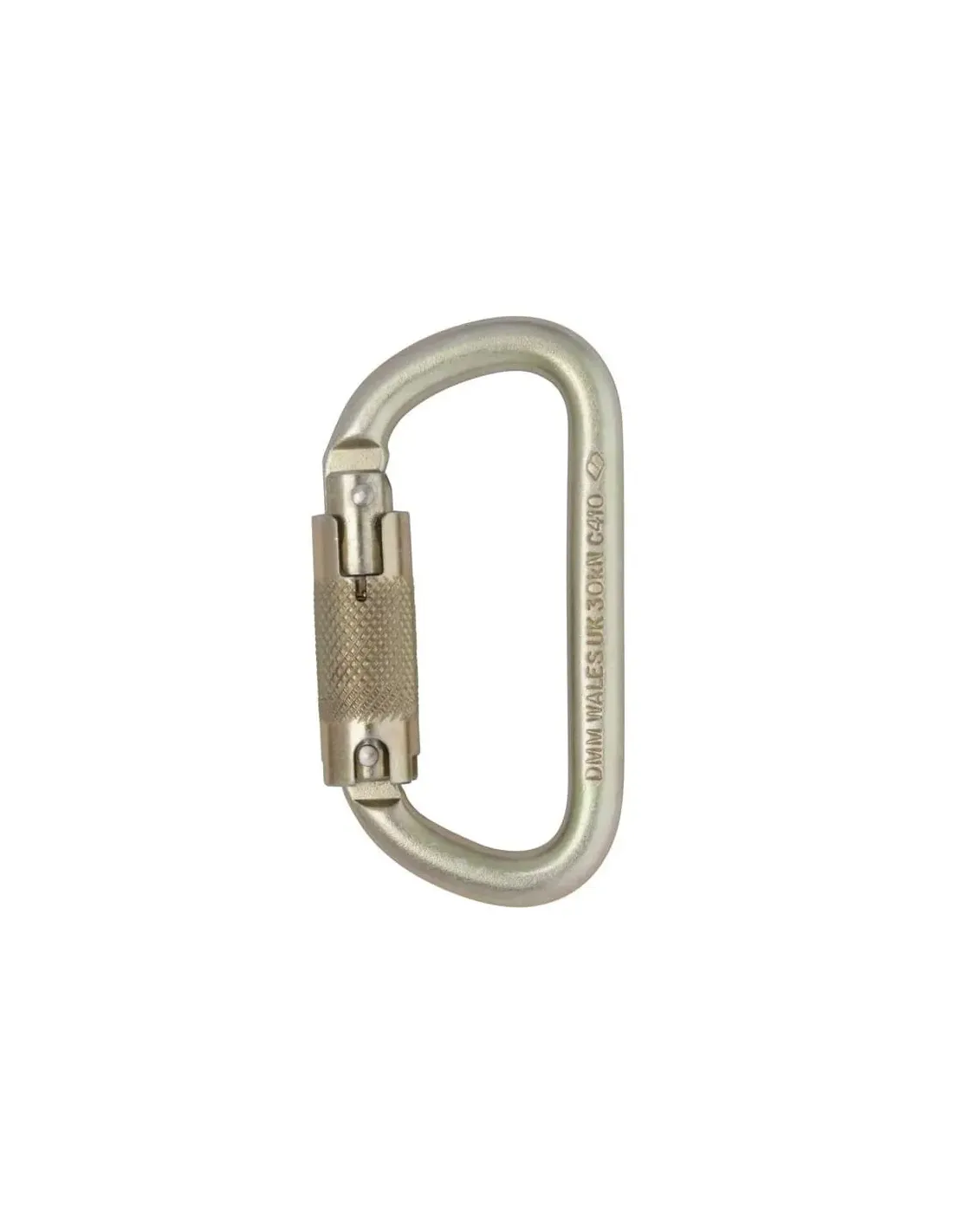

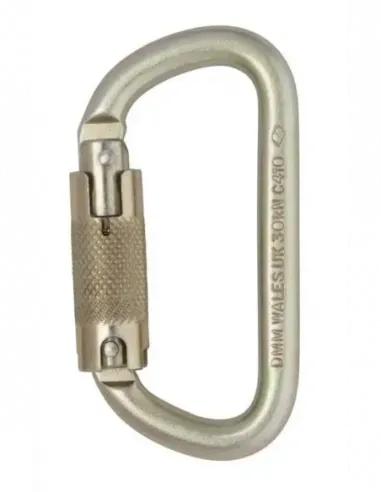

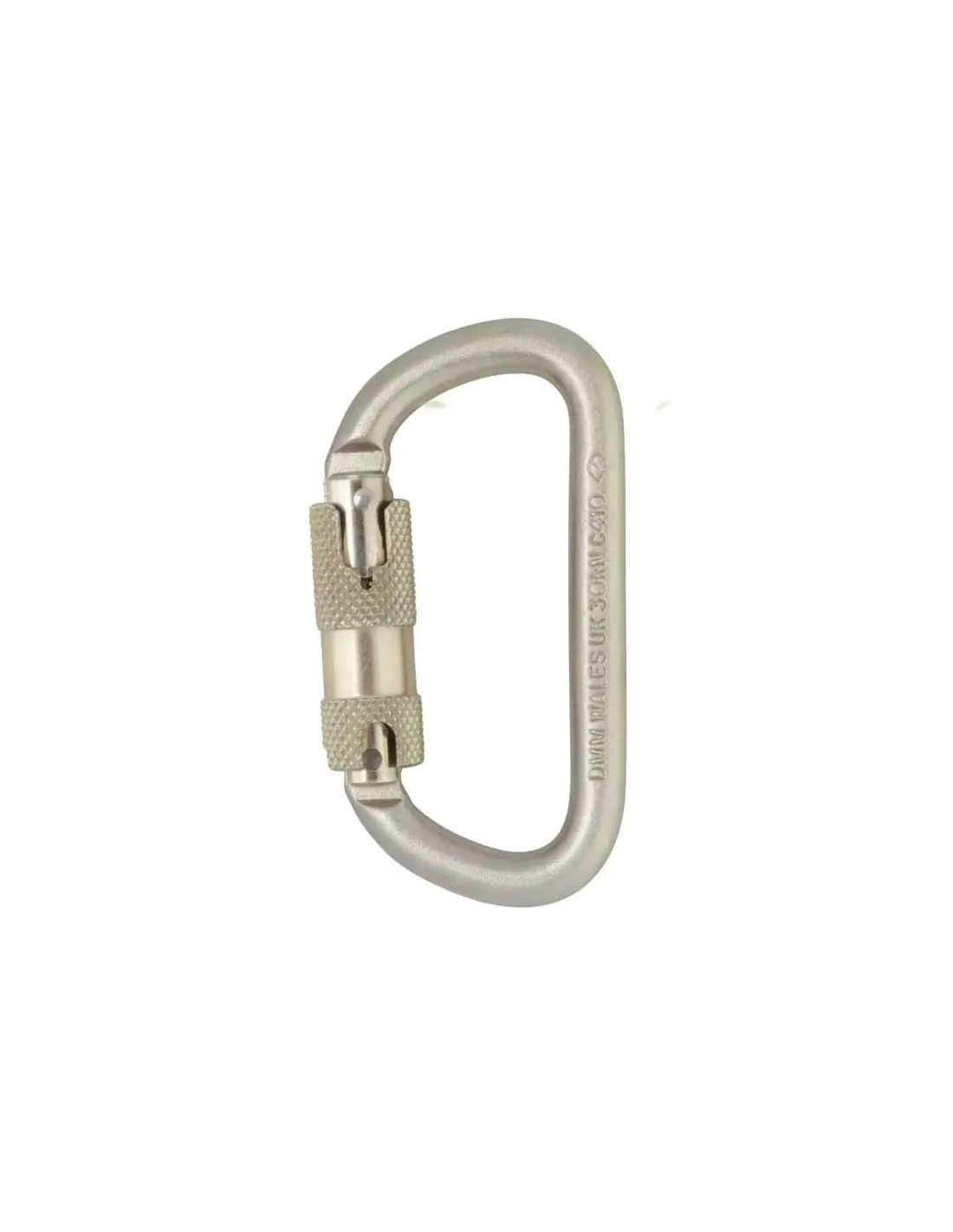

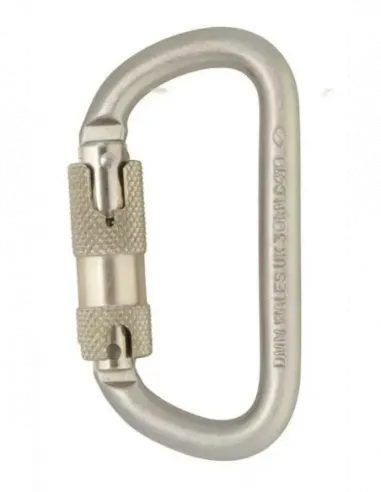

A long standing favourite in our height safety range, the 10mm steel Equal D connector strikes a perfect balance between strength, weight and usability
| Availability | |
|---|---|
| Quantity | Dispatch time |
| 5 pcs | 1–2 Days |
D-shaped connector bodies are designed to force the loads closer to the spine of the connector (the strongest orientation), therefore maximising strength. These are probably the most basic of all connectors in terms of shape, but this makes them a perfect choice in applications where strength and simplicity are paramount.
| Product Name | MBS (Major Axis) | MBS (Minor Axis) | MBS (Gate Open) | Dimensions | Weight | Gate Opening (X) | Certification |
|---|---|---|---|---|---|---|---|
|
10mm Equal D Locksafe
|
30kN | 9kN | 10kN | 54 x 105mm | 190g | 15mm | EN 362:2004 B/T, EN12275:2013 B |
|
10mm Equal D Locksafe ANSI
|
30kN | 16kN | 10kN | 54 x 105mm | 202g | 13mm | EN 362:2004 B/T, ANSI/ASSE Z359.12-2019, CAN/CSA Z259.12-16 |
