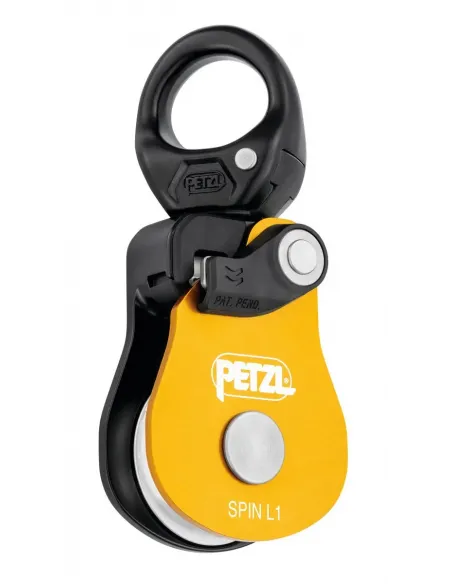

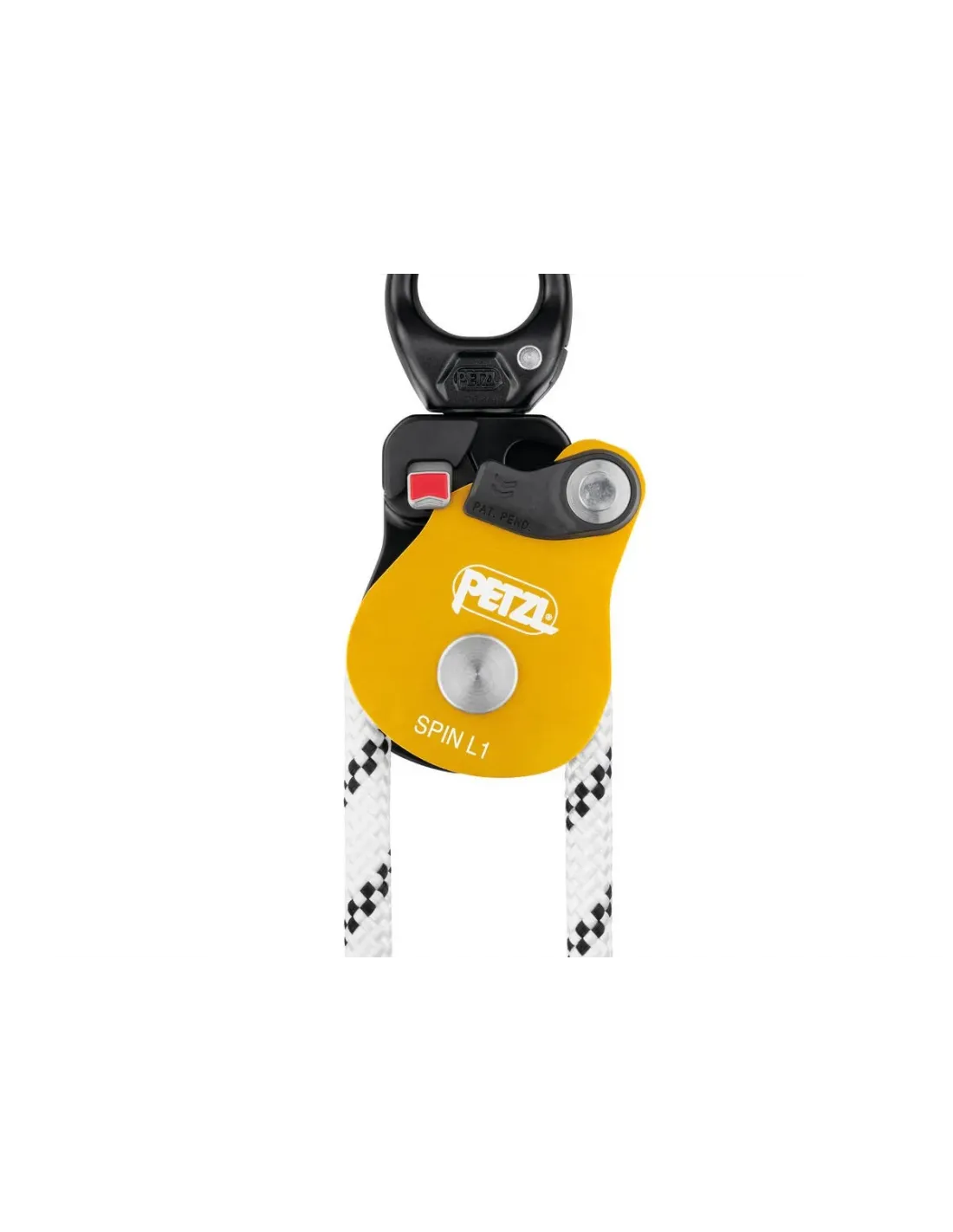

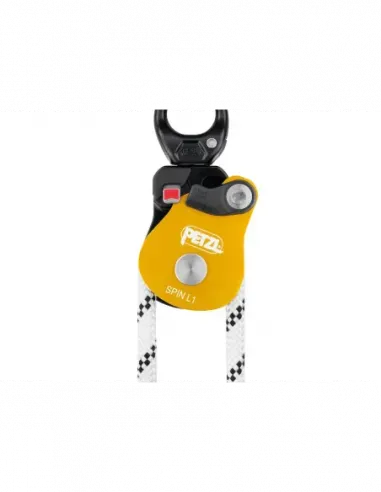

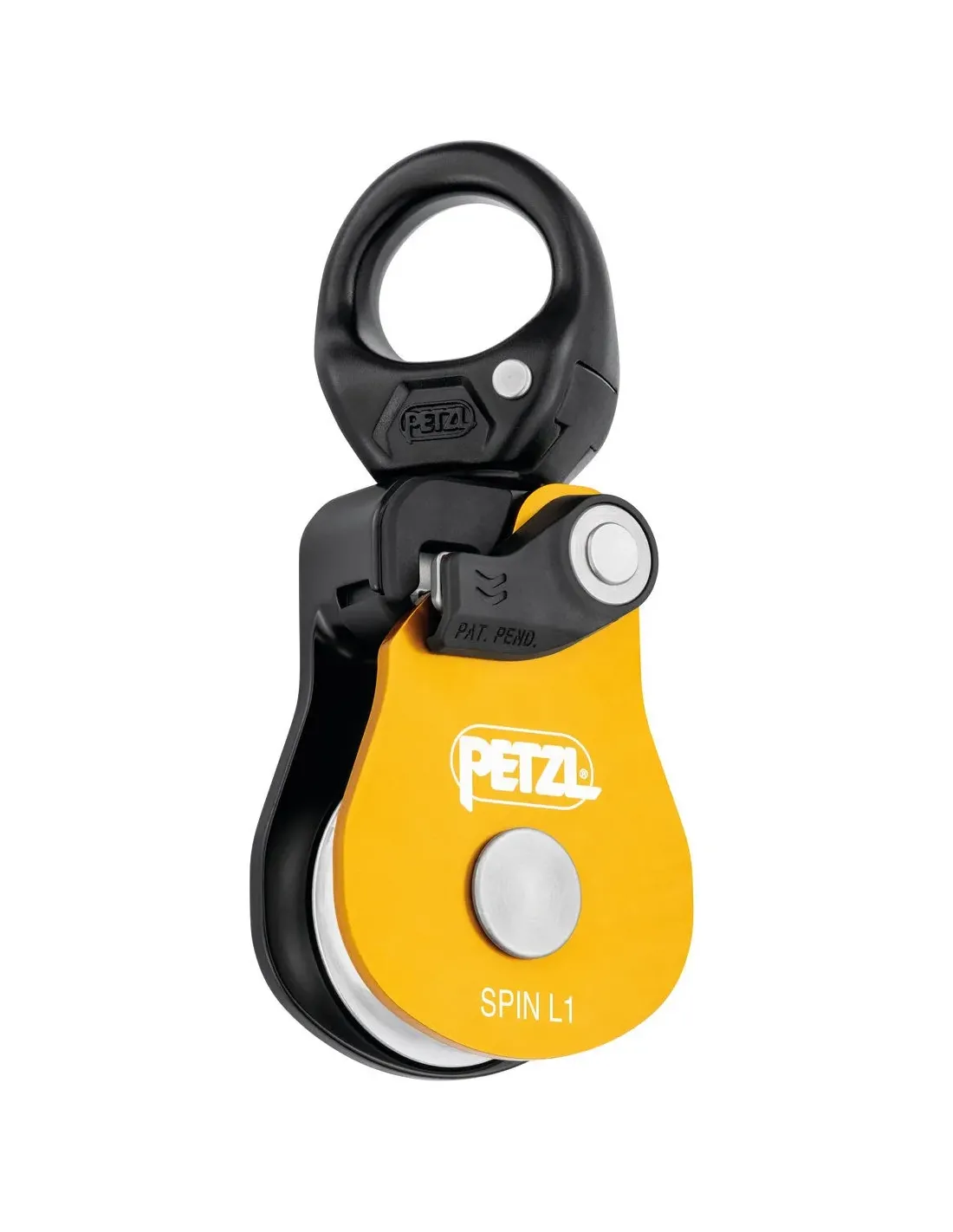

Spin L1 Pulley
Spin L1 Pulley
Spin L1 Pulley
Spin L1 Pulley

Spin L1 Pulley

Openable even when attached to the anchor, the SPIN L1 pulley is designed for maximum simplicity in setting up hauling or load deviation systems, and tyroleans. The large diameter sheave mounted on sealed ball bearings gives it excellent efficiency. The swivel facilitates handling, allowing the pulley to be oriented under load, and direct connection of carabiners, ropes or slings.

Color
  • Black
  • Yellow
€79.82

Price does not include any import charges. To find out more check our terms & conditions.

Product available with different options




Description

Designed for maximum simplicity in setting up hauling or load deviation systems and tyroleans for work at height, rescue and tree care:

  • triple-action opening of the moving side plate is quick and easy, even with gloves
  • the rope can be installed with the device connected to the anchor.
  • red mark provides a visual warning when the moving side plate is unlocked
  • special side plate design protects the rope path

Optimal efficiency and easy handling:

  • large diameter sheave mounted on sealed ball bearings for excellent efficiency
  • swivel allows pulley to be oriented under load
  • swivel accepts up to three carabiners and allows the use of ropes and slings to facilitate maneuvers.

Specifications

Weight: 290 g

Certification(s): CE EN 12278, NFPA 1983 Pulley General Use, UIAA

Material(s): aluminum, stainless steel, nylon

Min. rope diameter: 7 mm

Max. rope diameter: 13 mm

Sheave type: sealed ball bearings

Sheave diameter: 38 mm

Maximum working load: 4 x 2 = 8 kN

Breaking strength: 36 kN

Efficiency: 95 %

P001BA00
0 Items
3342540834927

Data sheet

Pulley Type
Single Pulleys
Swivel
With Swivel
Rope Compatibility
13 mm
Side Plates
Swinging Side Plates
