Coeur Bolt 10mm Stainless Steel Anchor
Coeur Bolt 10mm Stainless Steel Anchor

Coeur Bolt 10mm Stainless Steel Anchor

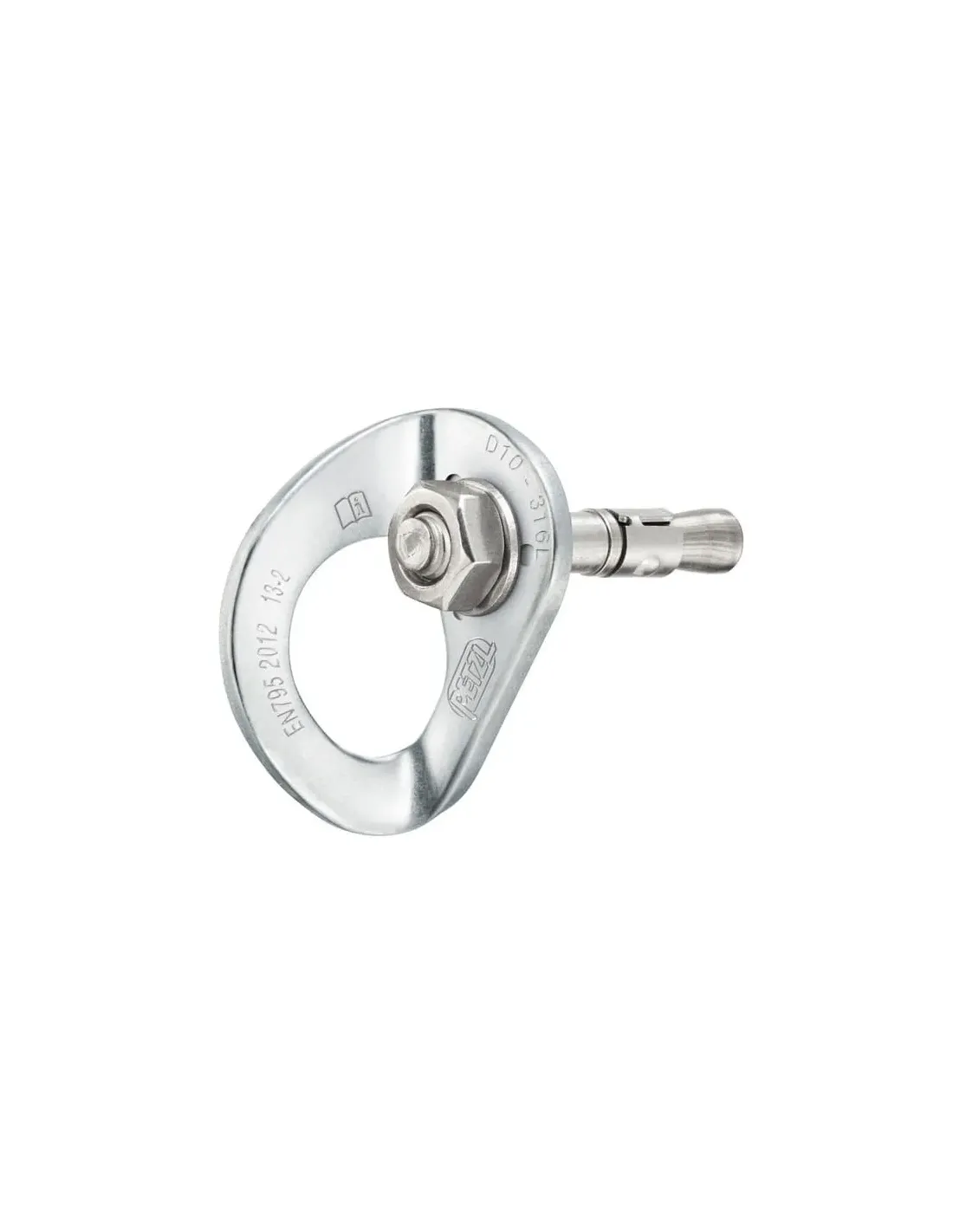

Stainless steel anchor composed of a COEUR STAINLESS hanger, a bolt and a nut, designed for typical exterior uses. It is available in 10 and 12 mm diameters.

€5.87

Price does not include any import charges. To find out more check our terms & conditions.

Last items in stock - Avaliable: 3

Availability
Quantity Dispatch time
3 pcs 1–2 Days




Description

  • Complete and durable assembly:
    • comprised of a COEUR STAINLESS hanger, nut and bolt
    • 316L stainless steel offers excellent resistance to corrosion in typical exterior environments
    • hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
  • Easy clipping:
    • the wide, ergonomic connection hole facilitates carabiner clipping
    • the width of the hole allows installation of two carabiners at the same time
  • Prevents wear of carabiners: the thickness of the hanger and the rounded edges of the connection hole limit wear of carabiners
  • Available in two bolt sizes (10 or 12 mm)

Specifications

  • Material(s): 316L stainless steel
  • Certification(s): EN 959

References

ReferencesP36BS 10
Diameter 10 mm
Weight 110 g
Drilling depth 7 cm
Drilling diameter 10 mm
Resistance to cutting on concrete 50 MPa 25 kN
Pull-out strength in concrete 50 MPa 15 kN
P36BS10
3 Items
3342540104181

Data sheet

Belay Station Type
Hanger Plates
