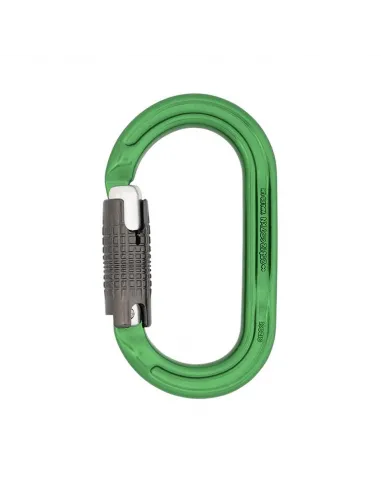

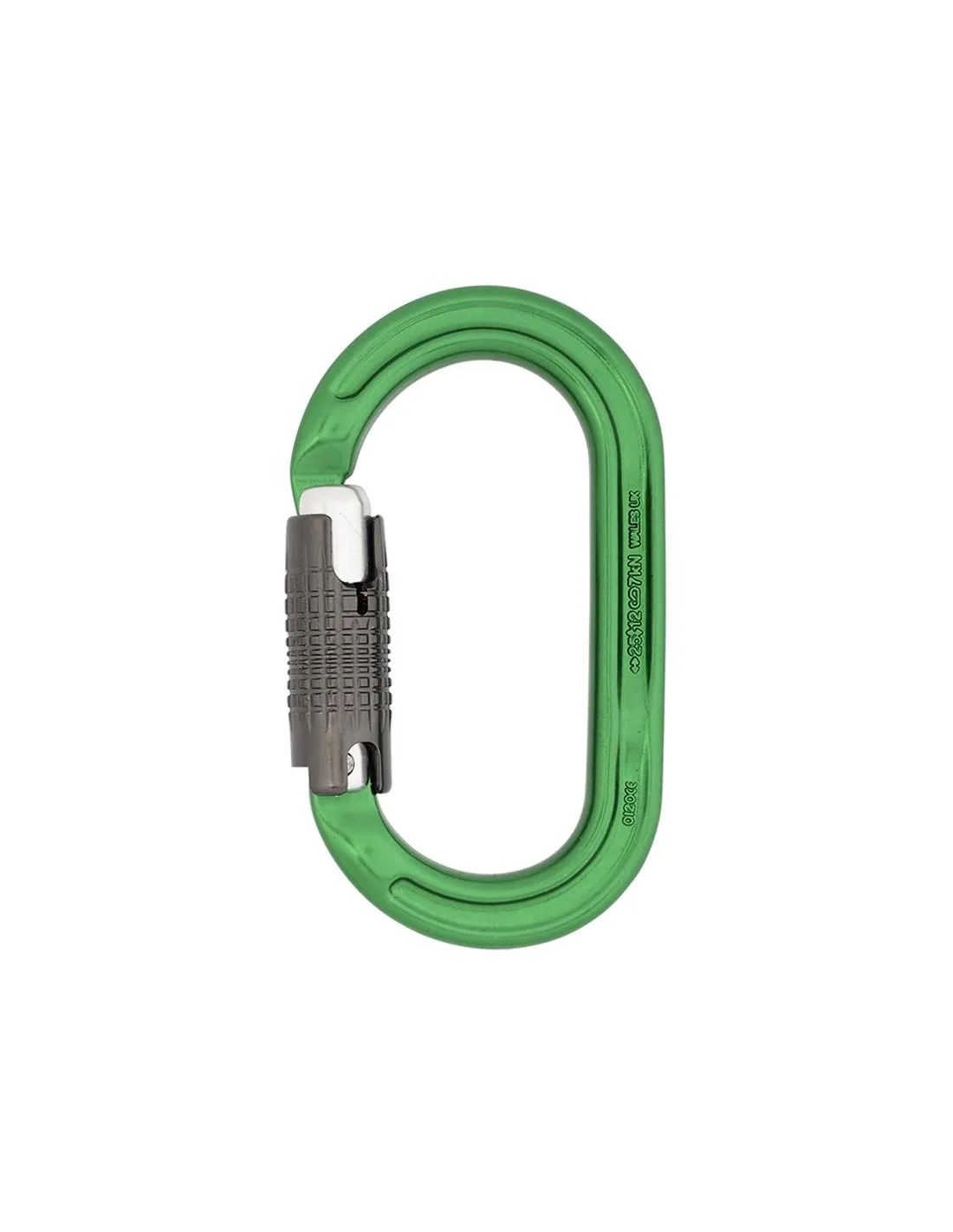

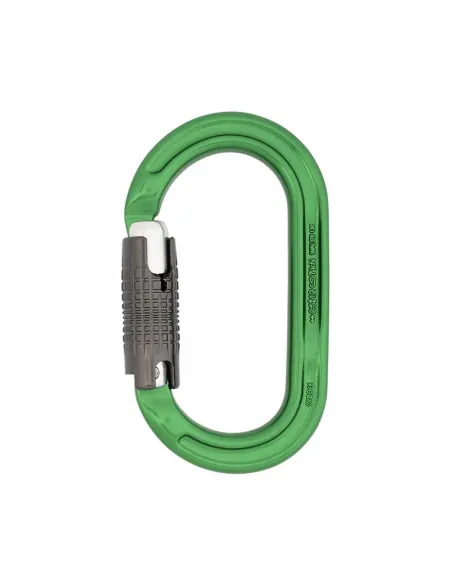

The Ultra O's symmetrical rope baskets are ideal for assisted breaking devices, pulleys, swivels and shackles. They also give stable loading characteristics, as attachments can self-centre under load with minimal movement from the carabiner.
Oval for symmetry; shape allows central positioning of devices
Oval connectors are popular in rope access and tree care situations where multiple connectors, slings, ropes or even pulleys can be connected. They are equally at home in fall arrest situations or as part of a pre-rigged rescue system. The round basket shape allows any of the connection points to self-centre when weighted - this helps avoid the unnerving click that often happens with a more D-shaped connector. The symmetrical basket mean rotation within systems is not required as they sit comfortably either way round.
Keylock clean nose for snag free connection
DMM's patented 'Taperlock' closing mechanism increases gate push-in and cross gate strength using a special flared profile on the nose of the carabiner, as well as allowing a snag free connection for your ropes, slings and devices.
Captive bar option for security
Many of our connectors can be supplied cross-drilled to accommodate captive bars. This means that the lanyard or attachment cannot be removed and ensures that the direction of force applied in the event of a fall is along the major axis of the connector, giving maximum strength and holding power. The captive bars themselves are not for load bearing use.
Dimensions
63 x 109mm
Weight
74g
MBS (Major Axis)
25kN
MBS (Minor Axis)
12kN
MBS (Gate Open)
7kN
Gate Opening
19mm
Certification
EN362:2004 B EN12275:2013 X/B UIAA121:2009
