Rollclip A Triact-Lock Pulley-Carabiner
Rollclip A Triact-Lock Pulley-Carabiner

Rollclip A Triact-Lock Pulley-Carabiner

Pulley-carabiner that facilitates installation of the rope when pulley is connected to the anchor

€32.76

Price does not include any import charges. To find out more check our terms & conditions.

Last items in stock - Avaliable: 1

Availability
Quantity Dispatch time
1 pcs 1–2 Days

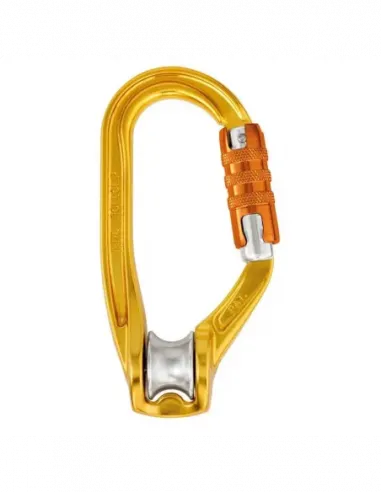

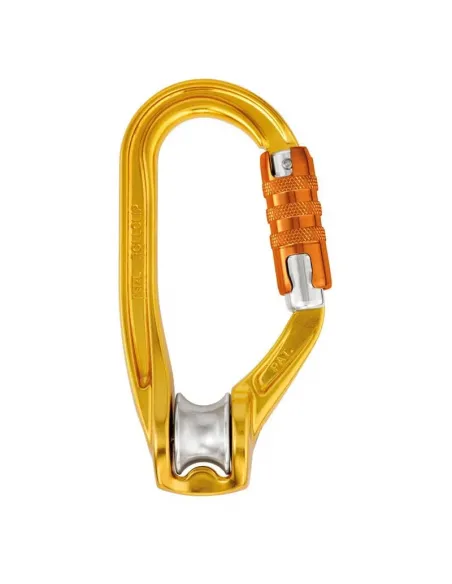

ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system. ROLLCLIP A may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

Description

  • Easier handling:
    • sheave mounted on sealed ball bearings for excellent efficiency
    • gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
    • may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping
    • Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
  • H cross-section of carabiner:
    • ensures an improved strength-to-weight ratio
    • protects markings from abrasion
  • Available in versions with or without TRIACT-LOCK locking system

Specifications

  • Material(s): aluminum
  • Min. rope diameter: 7 mm
  • Max. rope diameter: 13 mm
  • Sheave diameter: 18 mm
  • Maximum working load: 2 x 2 = 4 kN
  • Efficiency: 85 %
  • Major axis strength: 20 kN
  • Minor axis strength: 8 kN
  • Open gate strength: 7 kN

References

ReferencesP74 TL
Locking system TRIACT-LOCK
Weight 115 g
Certification(s) CE EN 362, EN 12275, EN 12278, EAC
Gate opening 22 mm
P74TL
1 Item
3342540104082

Data sheet

Pulley Type
Single Pulleys
Swivel
Without Swivel
Rope Compatibility
13 mm
Side Plates
Fixed Side Plates
Carabiner Lock
Tripple Lock
Material
Aluminium
