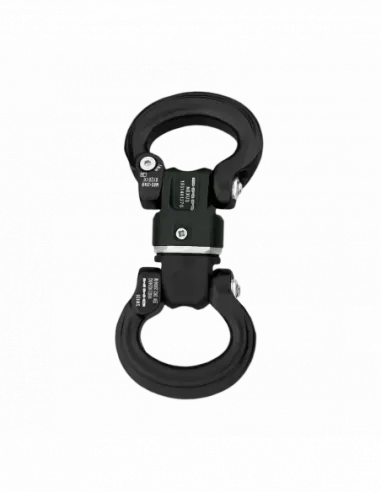

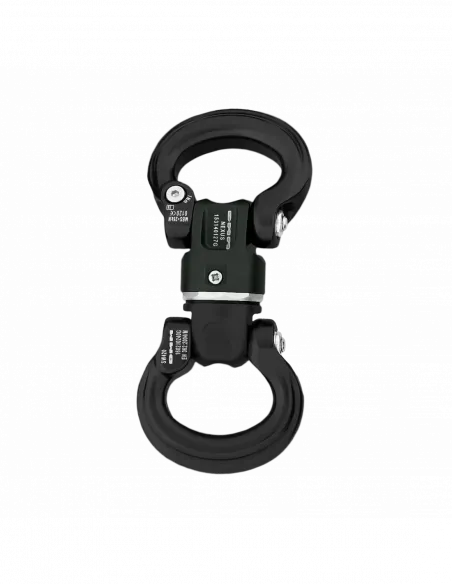

Nexus Swivel Bow to Bow

Our Compact Swivel and Shackle range allow you to manage torsion in a space-saving and versatile form factor. The interchangeable Compact Shackles provide connection options to suit your intended use.

Shackles on both sides of the swivel allows fitting to fixed eyes on either end creating a rotational element that takes up less height in a system than most connectors do. Available in three configurations depending on the user's requirements.

The small D shaped shackle keeps inline attachments neat and predictable whereas the increased size of the bow-shaped shackle allows more complex set ups by catering for loading across the shackle. A combination of both is also available.

Features

• Textile-friendly
• Hot forged aluminium shackles and CNC'd swivels
• User maintainable grease port for bearing longevity
• Double locking high tensile stainless steel axles for durability
• Roller thrust bearings for smooth efficiency
• Shackle uses 4mm and 2mm Allen keys to ensure secure locking

MBS

26kN

WLL

3kN

Dimensions

108 x 48 x 27mm

Weight

110g

Certification

RFU PPE-R/11.135 Version 3
